Automatic transport belt skirting machine produce shock pistons with size consistency

Technical parameters

TEAM: We have a technical team to develop automatic and semi-automatic machines.

DIMENSION: We can get the pistons with PTFE banding on OD and can highly improve work efficiency

and lower the cost. Infrared ray can control the piston's outer dimension and we can assure the

dimension's consistency.

MOULD: We can make the mould by ourselves.

OPERATORS: Only need to put the powder metallurgy products on the table and take out of the finished

pistons from the table.

One person can operate several machines.

To assure the appearance of the products, we will improve to use long conveyer directly to work table

If you are interested in such machines, we can offer the detail information if you need. Our technical

persons can help to set up and debug the machines.

Our technic persons can help to set up and debug the machines.

Output:500-600 pcs pistons/hour

Electricity:380V

Tooling set up:15 minutes

Piston diameter:25mm-46mm

Piston height:12mm-20mm

Machine lead time:2 months

Tooling lead time:3 weeks

Machinery spares:2 weeks

Machinery spare set:available

Pistons in /out:on table

Infrared ray can control the piston's outer dimension and we can assure the dimension's consistency.

MOULD: We can make the mould by ourselves.

OPERATORS: Only need to put the powder matallurgy products on the table and take out of

the finished pistons from the table.

One person can operate several machines.

Competitive advantage:

1.Easily operation

2.Machine can adjust and re-design by customer's demand

3.Have high efficiency

4.Have good uniformity

Application:

All PTFE banding piston with different size rang from 20mm to 45mm

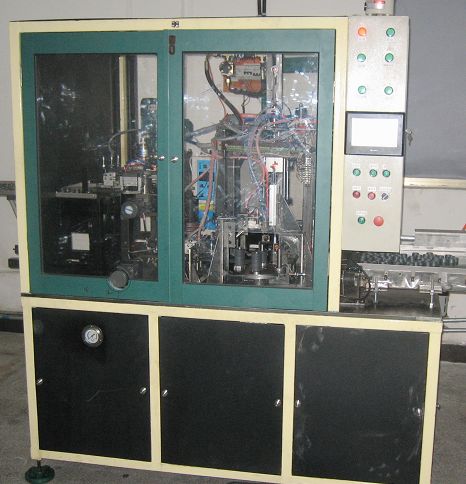

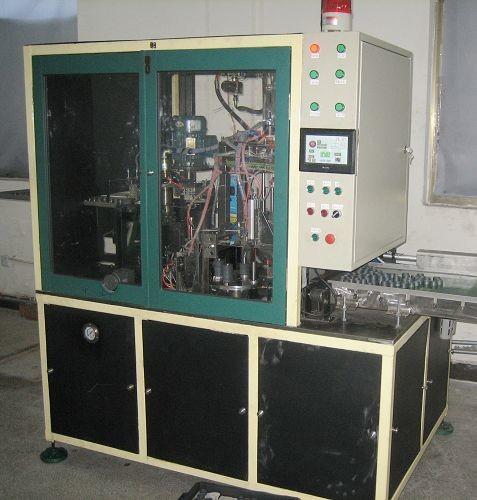

Picture show

XIAYI, founded in 2006, was set up in a beautiful city Ningbo, which is closed to Ningbo seaport and airport. XIAYI is a specialized factory that is engaged in producing auto spare parts, designing and manufacturing electromechanical & machinery parts and related automatic equipment. XIAYI has a strong R&D team with full of creative spirit. XIAYI develop new products and new equipment every year and was awarded two patents of utility model and invention patents.

The products include shock absorber piston, rod guider, base valve, oil seal, piston rod, bracket, spring seat, valves, guide pipe, bearing bush, copper bush, guide ring, PTFE ring and gasket, in addition XIAYI design and manufacture automatic machine such as banding machine and groove cutting machine.

As a manufacturer, XIAYI insists on pursuing better quality on and on. We control the quality from raw material to assure the consistency from one batch. We have carried out an integrated production system which is based on quality focus. We refer to the rigorous four aspects ( material importing control→ production line control→ QC department control→ logistic department control ) and quality control system to make sure all the products are intact before delivery.

As a seller, our products are exported to the whole world and sold nationally for more than 8 years. About 30% parts are exported to USA, Germany, France, Canada, Brazil, India, Malaysia etc., have set up good relationship with the customers from home and abroad. We have an intelligent marketing team who are exploring new markets, developing potential customers, solving problems and serving customers with orders well. We firmly believe that we are a competitive and friendly cooperator and our goal is for mutual benefit and long-term cooperation. XIAYI persons will always welcome customers from all over the world to visit and negotiate.
