    32mm Fe – C – Cu Sinter Shock Absorber Piston With Concentricity 0.05 For Rear Shocks

    Ask Lasest Price
    Brand Name : XIAYI
    Model Number : Φ32mm
    Certification : ISO9001:2008
    Price : negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 50,000 pcs per month
    Delivery Time : Two weeks after payment
    • Product Details
    • Company Profile

    32mm Fe – C – Cu Sinter Shock Absorber Piston With Concentricity 0.05 For Rear Shocks

    32mm Fe – C – Cu sinter shock absorber piston with concentricity 0.05 for rear shocks


    Specifications:


    Product Name


    Shock absorber piston


    Material


    (MPIF 35) FC-0205 (DIN 30910-4) Sint C10, Fe, Balance, Cu 1.5-3.9%, C 0.3-0.6%
    Density6.4-6.9 g/cm3 after steam oxidation

    Hardness


    55-90 HRB, loading 1 KN, diameter of ball 1/16"

    Surface Treatment


    Steam oxidation, 2 hours, Fe3O4: 0.004-0.005mm, degree of oxidation 2-4%
    Unspecified ToleranceISO 2768 - m / H14, h14, +- IT14/2

    Apperance


    No crumbling, cracks, exfoliation, voids, looseness, metal pitting and other defects

    Physical performance for shock piston

    tensile strength

    More than 18MPa

    elongation @ break

    More than 160%

    shore hardness (bands)

    57 - 61

    density

    2.06 – 2.19 g/cm3

    wear

    Less than 50mg

    friction coefficient

    Less than 0.2

    hardness (sinter piston)

    HRB60-80

    Technical requirements for sinter piston

    Raw material F50 - U3 - 66 or FC - 0208

    Steam treatment

    OD tested by digital air gauge


    Description:


    PTFE bands Powder metal piston 27mm shock absorber Suspension Piston for shock absorber


    No foreign material or burr for PTFE disc


    Product Name:Powder Metal Part - Piston for Shock Absorber


    Raw Materials:Fe-C-Cu for sinter piston / PTFE + carbon for PTFE disc


    100% test of pistons’ appearance


    No sinter powder on the pistons


    Processing for sinter piston and PTFE banding


    Production process:


    Powder mixing - Compacting - Sintering - Oil impregnation - Sizing - Ultrasonic cleaning - Steam oxidation


    - Oil impregnation - Final inspection - Packing (+ DP4 bushing / +PTFE band)


    Quality Control: 100% inspection on critical dimensions


    Production Output: 100,000 pieces/month


    Experience: Many years of professional OEM service


    Material: Aluminum, brass, stainless steel, copper, alloys,etc.


    Supply chain process: PPAP


    Ability: To develop hundreds of news parts annually


    Manufacturability


    1. Auto Mechanical Press: 50T, 100T, 140T


    2. Hydraulic Press: 100T, 315T, 600T, 800T


    3. Six sinter furnaces, including one harden Sinter Furnace


    4. Heat treatment: Carbonitriding quenching and high frequency quenching


    5. Ultrasonic clearing and auto burring


    6. In-house tooling making: EDM, wire cutting machine


    7. Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc.


    Applications:


    For automobile, motorcycle and bicycle shock absorber


    Competitive Advantage:


    1) Our factory has been accredited the ISO9001:2008 certificate.


    2) Using different raw materials.


    3) Have our own plant, can tell you the progress of production accurately.


    4) We can make the products according to customer's drawings.

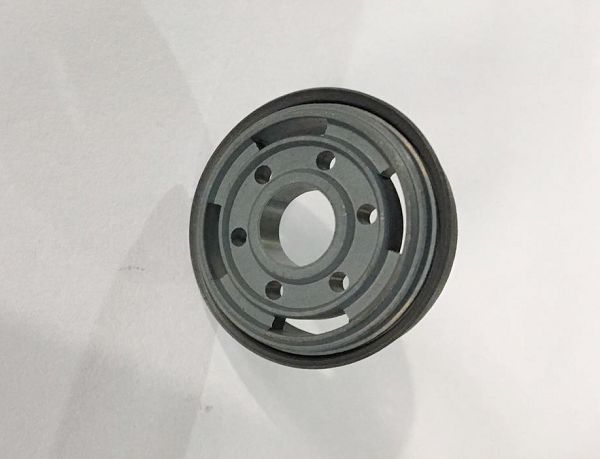

    Picture show:
