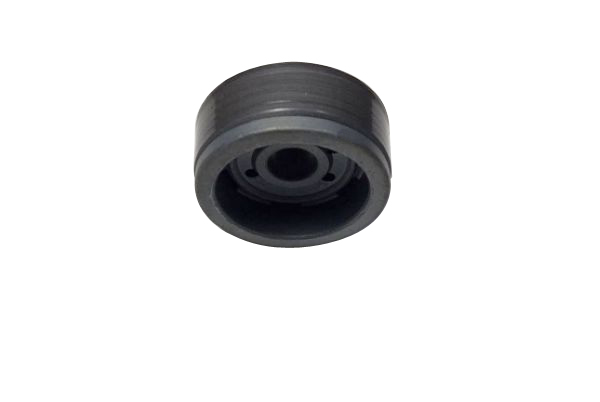

Elongation @ break 356% Banded Piston of shock absorber OD 30mm With leakage Oil Holes

Specifications:

Description:

Fe-C-Cu material based suspension piston, PTFE piston ring can stand fatigue test

Size: D30XD8X12

Nether OD: 29.90-29.94mm

Upper OD: 30.05-30.30mm

Banded height (including iron part): 11.20-11.70mm

Bore size: 30mm

Groove fill: Min0.34mm

Material of PTFE disc

PTFE + carbon or according to customer’s demand

1. PTFE+BRONZE

2. PTFE+BRONZE+ACID TREATMENT

3. PTFE+CARBON FIBER

4. PTFE+GLASS FIBER+INTENSIFIER

5. OTHER FILLERS

Manufacturability
1.Auto Mechanical Press:50T, 100T, 140T
2.Hydraulic Press:100T, 315T, 600T, 800T
3.Six sinter furnaces, including one harden Sinter Furnace
4.Heat treatment:Carbonitriding quenching and high frequency quenching
5.Ultrasonic clearing and auto deburring
6.In-house tooling making:EDM, wire cutting machine
7.Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc.

Xia Yi company product suspension pistons, shock absorber pistons and other sintered parts of shock absorbers. The products include rod guider, piston, valve seat and other powder metallurgy parts.

We can offer our suspension pistons with aggressive pricing, superior design and engineering, excellent quality and unparalleled service and delivery.

Process of the piston banding

POWDER BLENDING→PTFE SYLINDER COMPRESSION→SINTERING→PTFE DISC PRODUCTION→PREPRESSING→HEAT PRESSING→MOLDING→DEBURRING→INSPECTION→PACKAGE

Advantages:

Low-cost

Close Tolerances

Complex multi-level design

High strength

Some of our pistons:

Applications:

Car or motorbike shock absorbers

Competitive Advantage:

XIAYI is a professional company which produces different size and design shock absorber pistons.

XIAYI has a complete set of testing equipment which can control the quality for the material.

Picture show:

XIAYI, founded in 2006, was set up in a beautiful city Ningbo, which is closed to Ningbo seaport and airport. XIAYI is a specialized factory that is engaged in producing auto spare parts, designing and manufacturing electromechanical & machinery parts and related automatic equipment. XIAYI has a strong R&D team with full of creative spirit. XIAYI develop new products and new equipment every year and was awarded two patents of utility model and invention patents.

The products include shock absorber piston, rod guider, base valve, oil seal, piston rod, bracket, spring seat, valves, guide pipe, bearing bush, copper bush, guide ring, PTFE ring and gasket, in addition XIAYI design and manufacture automatic machine such as banding machine and groove cutting machine.

As a manufacturer, XIAYI insists on pursuing better quality on and on. We control the quality from raw material to assure the consistency from one batch. We have carried out an integrated production system which is based on quality focus. We refer to the rigorous four aspects ( material importing control→ production line control→ QC department control→ logistic department control ) and quality control system to make sure all the products are intact before delivery.

As a seller, our products are exported to the whole world and sold nationally for more than 8 years. About 30% parts are exported to USA, Germany, France, Canada, Brazil, India, Malaysia etc., have set up good relationship with the customers from home and abroad. We have an intelligent marketing team who are exploring new markets, developing potential customers, solving problems and serving customers with orders well. We firmly believe that we are a competitive and friendly cooperator and our goal is for mutual benefit and long-term cooperation. XIAYI persons will always welcome customers from all over the world to visit and negotiate.
