    12.5mm Coaxiality 0.05 Shock Absorber Rod With Chrome Plated Hrc35-65

    Ask Lasest Price
    Brand Name : XIAYI
    Model Number : K25-50-1209-5
    Certification : IATF16949
    Price : USD0.8 ~ 1.1 /set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 sets per day
    Delivery Time : 15-25days after PO confirmed
    • Product Details
    • Company Profile

    12.5mm Coaxiality 0.05 Shock Absorber Rod With Chrome Plated Hrc35-65

    12.5mm coaxiality 0.05 Shock Piston Rod with Chrome Plated HRC35-65 for automotive


    Descriptions of Chrome Plating Piston Rod for Shock Absorber

    Outer DiameterØ12.5(-0.01/-0.03)
    Total Length270mm
    Steel MaterialCK45/ ST52/ 20MnV6/ 42CrMo4/ 40Cr/ bearing steel/ stainless steel
    ToleranceISO f7
    Chrome thickness20~30micron
    Hardness of the chrome layer950 HV Min
    RoughnessRa 0.2micron (max)
    Straightness0.2/1000mm
    Yield Strength≥350 MPa
    Tensile Strength≥580 MPa
    Elongation≥ 15%

    Supply condition

    1. Hard Chrome Plated
    2. Induction Hardened
    3.Quenched & Tempered
    4.Induction hardened with Q&T

    Manufacturing Main Process description:


    1. Hydraulic Steel Raw Material Cutting
    2. CNC Machining + additional broaching and milling operations
    3. Induction Hardening
    4. Chrome Plating
    5. Dehydrogenation and Tempering
    6. Polish and Superfinish Polish
    7. 100% Inspection
    8. Craft Boxes and Wooden Case Packaging


    Chemical Composition

    MaterialC%Mn%Si%S%P%V%Cr%
    Ck450.42-0.500.50-0.800.17-0.37≤0.035≤0.035≤0.25
    ST52≤0.22≤1.6≤0.55≤0.04≤0.040.02-0.15
    20MnV60.17-0.241.30-1.700.10-0.50≤0.035≤0.0350.10-0.20≤0.30
    42CrMo40.38-0.450.50-0.800.17-0.37≤0.035≤0.0350.07-0.120.90-1.20
    40Cr0.37-0.450.50-0.800.17-0.37≤0.035≤0.0350.80-1.10

    Mechanical Properties

    MaterialT.S N/MM2Y.S N/MM2E%(MIN)CHARPYCONDITION
    CK4561035515>41JNORMALIZE
    CK4580063020>41JQ + T
    ST5250035522NORMALIZE
    20MnV675059012>40JNORMALIZE
    42CrMo498085014>47JQ + T
    40Cr100080010Q + T

    Description:

    Surface treatmentBlackening, polishing, anodize, chrome plating, zinc plating, nickel plating, grinding…
    Quality AssuranceIATF16949:2016 certified/SGS/TUV
    Drawing formatsSolid works, Pro/Engineer, AutoCAD, UG, PDF

    Equipment used

    Japan 5-axis TSUGAMI-B-038T CNC turing machine
    Japan 4-axis GAMA DMN-650 machining center
    Cylindrical Bore Grinders
    Wire EDM
    Magnetic grinding machine/ grinding Vibration machining
    Oven
    Ultrasonic cleaning machine
    Vacuum packing machine

    Inspection device

    VMS2.5d measuring machine
    Japan Mitutoyo tool microscope
    Japan Mitutoyo digimatic micrometer
    Japan Mitutoyo hardness tester
    Japan Mitutoyo calipers
    Japan Mitutoyo dial indicator
    Japan Mitutoyo height measuring tool
    Japan Mitutoyo tubular inside micrometer
    Japan Marble platform
    Go No Go gauge
    Electronic digital display caliper Ring gauges

    Industry used

    Machinery; heavy duty equipment; electronic device; Auto spare parts; optical telecommunication…

    Advantage of Product
    1)Professional & skilled, reliable.
    2)One-stop total solution
    3)ready stock goods with fast delivery
    4)Customizable: Non-standard sizes are also available
    5)Small quantity is acceptable
    6)Cash back: Refund or replacement for any product faulty

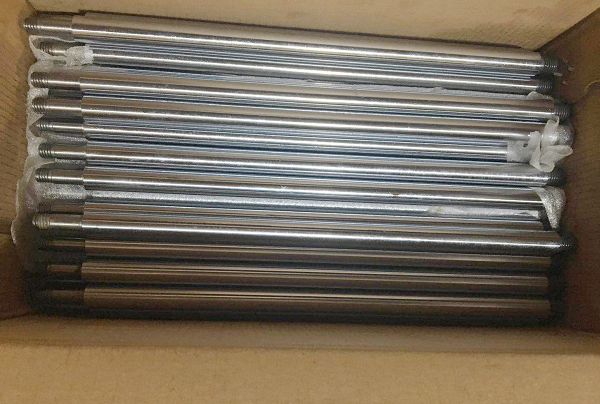

    Picture:

    Quality 12.5mm Coaxiality 0.05 Shock Absorber Rod With Chrome Plated Hrc35-65 for sale
