    45 # Chrome Plated Shock Absorber Piston Rod With Hardness Hrc 40 - 46

    Ask Lasest Price
    Brand Name : XIAYI
    Model Number : K25-50-1233-6
    Certification : IATF16949:2016
    Price : USD1.25~ 1.45 /set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 sets per day
    Delivery Time : 15-25days after PO confirmed
    • Product Details
    • Company Profile

    45 # Chrome Plated Shock Absorber Piston Rod With Hardness Hrc 40 - 46

    reasonable Price 45 # Chrome plated Shock Absorber Piston Rod with hardness HRC 40-46


    PARAMETER

    Item No.K25-50-1233-6
    Body Material#45 #35
    DiameterD12.5-0.01/-0.03
    Lengthcustomizable
    Depth of quenched layer0.6-1.0
    HardnessHRC 40-46
    RoughnessRz< 0.65
    Single Plating Thickness>15 μm
    Plating900-1200 HV0.1
    Microcrack>600 pcs/m²
    Blending test maximum pressure 52KN, transformation over 15mm

    Specification:

    Chrome Thickness10~25 μm
    Chrome Hardness850 HV Min
    RoughnessRa 0.2 Micron Max
    Straightness0.2/1000mm
    Yield StrengthAccording to the steel material and customer requirement
    Tensile StrengthAccording to the steel material and customer requirement
    ElongationAccording to the steel material
    Bend TestAccording to customer requirement

    Manufacturing Main Process description:
    1. Hydraulic Steel Raw Material Cutting
    2. CNC Machining + additional broaching and milling operations
    3. Induction Hardening
    4. Chrome Plating
    5. Dehydrogenation and Tempering
    6. Polish and Superfinish Polish
    7. 100% Inspection
    8. Craft Boxes and Wooden Case Packaging


    Description:

    Surface treatmentBlackening, polishing, anodize, chrome plating, zinc plating, nickel plating, grinding…
    Quality AssuranceIATF16949:2016 certified/SGS/TUV
    Drawing formatsSolid works, Pro/Engineer, AutoCAD, UG, PDF

    Equipment used

    Japan 5-axis TSUGAMI-B-038T CNC turing machine
    Japan 4-axis GAMA DMN-650 machining center
    Cylindrical Bore Grinders
    Wire EDM
    Magnetic grinding machine/ grinding Vibration machining
    Oven
    Ultrasonic cleaning machine
    Vacuum packing machine

    Inspection device

    VMS2.5d measuring machine
    Japan Mitutoyo tool microscope
    Japan Mitutoyo digimatic micrometer
    Japan Mitutoyo hardness tester
    Japan Mitutoyo calipers
    Japan Mitutoyo dial indicator
    Japan Mitutoyo height measuring tool
    Japan Mitutoyo tubular inside micrometer
    Japan Marble platform
    Go No Go gauge
    Electronic digital display caliper Ring gauges

    Industry used

    Machinery; heavy duty equipment; electronic device; Auto spare parts; optical telecommunication…

    Advantages:

    1. Always being Reliable, Professional and Proactive.
    2. More than 15 years in the CNC precision machining industry.
    3. Japan Tsugami CNC machines, with cutting edge CNC solution.
    4. IATF16949 : 2016 Quality control system, we not only provide qualified products, but also care about perfect looking surface.


    Other questions:

    Q1. Are you a Manufacture or Trading Company?
    A1:We are manufacturer. We have been in this line for more than 10 years

    Q2. What kinds of parts can you supply?
    A2: 1. Piston rod 2. Oil seal 3. Rubber parts 4. Pistons. 5. Stamping parts 6. Powder metallurgy parts etc.

    Q3. What is your production Lead Time?
    A3: 5 working days for goods in stock ,15-45 days for mass products.


    Q4. What is your payment way?
    A4:We accept payment by western union, T/T, L/C. Normally. 30% deposit in advance, 70% balance before shipment.

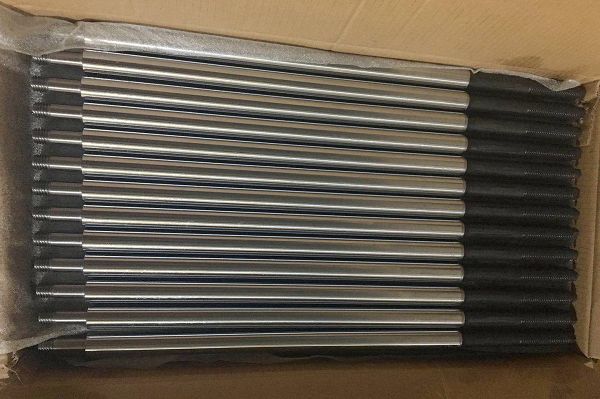

    Picture:
