Rod Guide 14.2mpa IATF16949 Shock Oil Seal

Ningbo XiaYi Electromechanical Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Rod Guide 14.2mpa IATF16949 Shock Oil Seal from wholesalers

    Buy cheap Rod Guide 14.2mpa IATF16949 Shock Oil Seal from wholesalers
    • Buy cheap Rod Guide 14.2mpa IATF16949 Shock Oil Seal from wholesalers
    • Buy cheap Rod Guide 14.2mpa IATF16949 Shock Oil Seal from wholesalers
    • Buy cheap Rod Guide 14.2mpa IATF16949 Shock Oil Seal from wholesalers
    • Buy cheap Rod Guide 14.2mpa IATF16949 Shock Oil Seal from wholesalers

    Rod Guide 14.2mpa IATF16949 Shock Oil Seal

    Ask Lasest Price
    Brand Name : XIAYI
    Model Number : 20*33*10/15
    Certification : IATF16949:2016
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 20,000pcs per month
    Delivery Time : Two weeks for new samples
    • Product Details
    • Company Profile

    Rod Guide 14.2mpa IATF16949 Shock Oil Seal

    NBR rubber oil seal tensile strength 14.2 MPa of GB/T 528-1998 applied in rod guide

    Specifications:

    ITEMSPECTEST METHODRESULT
    MAIN LIPø18.20±0.35PROJECTOR18.12-18.16
    DUSTPROOF LIPø18.90±0.30PROJECTOR18.64-18.72
    ODø33+0.3/+0.1CALIPER33.16-33.26
    HEIGHT (1)10±0.20CALIPER10.10-10.16
    HEIGHT (2)15±0.30CALIPER15.20-15.24


    Description:

    Our company is specialized in producing shock absorber parts: oil seal, Piston, Rod Guide, base valve.

    piston rod, valve disc, stamping parts and other sinter parts.

    Equipment Advantages:

    Automatic Hydraulic Machines

    Automatic Mechanical Pressers

    Vacuum Furnaces

    Sintering furnace

    CNC tooling machine

    Properties:

    ITEMSPECRESULTSTANDARD
    Shore A80±584GB/T531-1999
    Tensile strength≥12MPa14.2GB/T528-1998
    Elongation @ break≥150%265
    Compression deformationMax+5019GB/T7759-1996
    100℃ * 70 h Sample B type
    Tear strength right angle≥3059.56GB/T529-1999
    air oven aging testHardness change point0~+10+3GB/T3512-2001
    Tensile strength change rateMax-20-2
    Elongation @ break change rateMax-50-6
    oil resisitant 100℃ * 70 h (IRM901)Hardness change point-50~+10+3GB/T1690-1992
    Volumn change rate-10~+5+1
    oil resisitant 100℃ * 70 h (IRM903)Hardness change point-10~+5-2GB/T1690-1992
    Volumn change rate0~+20+4
    Brittleness Temperature≤-40℃-40℃GB/T1682-1994
    Rubber standard: HG/T2810-2008 WA8533


    We can also produce different valve seat with different dimensions.

    Some dimensions of compression valve seat are below:

    ØD

    ØD1

    ØD2

    Ød

    H

    H1

    H2

    h

    28

    23.8

    22.1

    16

    11

    4.3

    2.5

    3

    29.8

    25.8

    22.1

    16

    11.5

    4.3

    2.5

    3.5

    33

    28.3

    22.1

    16

    15

    7.3

    3

    4

    34

    29.1

    22.1

    17

    16

    9.5

    3.5

    4

    35

    30.8

    22.1

    16

    15

    7.3

    3

    4


    Sintered Parts
    1. Professional Fe/Cu based powder metallurgy parts manufacturer

    2. Process flow: Mixing--Compacting--Sintering--Re-sizing--ultra sonic cleaning--vacuum oiling--

    Packing

    3. High precision, low noise, wear resistance, energy saving, environment protection, high efficiency and

    low cost.

    4. High quality guarantee: electronic balance to ensure density, test equipments to ensure crushing

    strength, QC and PQC to ensure close tolerance and accurate dimension.

    5. Design ability: Developed different models of gear, bearing, bushing, structural parts etc. can

    produce according to drawings or samples.

    Applications:

    1. Automotive Part

    2. Motorcycle Part

    3. Pump Parts

    4. Locomotive Parts

    5. Machinery Parts
    Competitive Advantage:

    (1) Electronic balance ensure density

    (2) Test equipments to ensure crushing strength

    (3) QC an PQC to ensure close tolerance and accurate dimension

    Picture show:

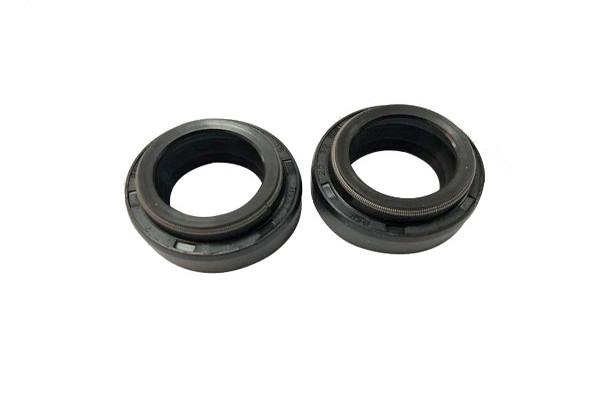

    Quality Rod Guide 14.2mpa IATF16949 Shock Oil Seal for sale
