    1.2Mm thickness ptfe wearing strip Shock Absorber Parts with graphite carbon filler

    Ask Lasest Price
    Brand Name : XIAYI
    Model Number : XYPTFE161020-1
    Certification : ISO9001:2008
    Price : negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 150,000pcs per month
    Delivery Time : two weeks for new samples
    • Product Details
    • Company Profile

    1.2Mm thickness ptfe wearing strip Shock Absorber Parts with graphite carbon filler


    1.2Mm thickness ptfe wearing strip Shock Absorber Parts with graphite carbon filler

    Specifications:

    Features of PTFE guide strip PTFE band for seal ring
    Type of guide stripptfe filled bronze guide stripphenolic resin guide strip
    Speed<15m/s<1m/s
    Temperature-60 to 200 °C-60 to 130 °C
    Load15N/mm290N/mm2
    Performancewear resistance, temperature resistance, corrosion resistance, etc.Excellent compression strength, hardness, heat distortion temperature, impact resistance, self lubrication.



    Type of filler -Graphite

    Extremely low coefficient of friction

    Chemically inert

    Usually incorporated with other fillers such as glass or carbon

    Increases wear resistance especially against soft metal


    Description:

    Manufacturers of PTFE Piston Bands

    Used in shock absorber struts

    Poly Fluoro Piston Bands are designed for hydraulic and pneumatic equipment. Its unique design

    prevents equipment seizures which can arise with other forms of guidance materials.

    Poly Fluoro Piston Bands offer extremely low friction and break-away forces. This material is also resistant

    to all hydraulic fluids, and is suitable for temperatures up to 200°C.

    Poly Fluoro Piston bands are the solution to costly cylinder re-machining and repairs for large diameter

    equipment. Coils are available in common sizes and are easy to use, cut and install.

    The bearing material is made from PTFE with a 40% Bronze filling and is specifically designed to support

    heavy loads. The exceptional physical properties and PTFE lubricants make the piston bands suitable for

    use on rams or pistons in reciprocating applications.

    Meanwhile we can also add other fillers with PTFE, such as glass fiber, carbon fiber, graphite and so on.

    Application data

    Inspection item

    Unit

    Data

    Bulk density

    G/CM3

    1.90(±0.10)-for sheet; 2.30(±0.20) for PTFE seal

    Color


    Green, Blue, White, Black

    Pressure Limit

    Bar

    40

    Temperature Limit

    260

    PH Range


    0-14

    PTFE Seal thickness

    MM

    0.5(±0.10)/side

    Gasket Thickness

    MM

    2(±0.10) or as customers' request


    Advantages1. Good abrasion resistance, long lifetime.
    2. High structure strength, certain degree elasticity.
    3. Without metallic contact of the sliding surfaces.
    4. Control the machine’s vibration.
    5. Absorb the size’s load.
    6. Enlarge the clearance of seal’s extrusion.
    7. Simple groove design, and high load capacity.



    Applications:

    It is widely used as flange sealing to joint where strong acid or alkaline or other corrosive.


    Competitive Advantage:

    Prevents metal to metal scoring and prolongs equipment life

    Reduces radial movement on both rams and pistons to extend seal life

    PTFE lubricant allows for lower coefficient of friction between mating surfaces

    Retrofits existing bearing groves and eliminates unnecessary modifications

    Available in common groove width dimensions, minimizing inventory costs

    Strips can be cut to size from the coil

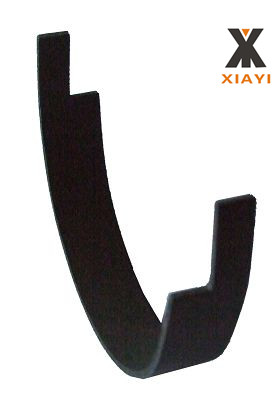

    Picture show:
