    20mm Carbon fiber filled PTFE Shock Absorber Piston ring for Motorbike front shocks

    Ask Lasest Price
    Brand Name : XIAYI
    Model Number : Φ20mm
    Certification : ISO9001:2008
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 1,000,000pcs per month
    Delivery Time : One week after payment
    • Product Details
    • Company Profile

    20mm Carbon fiber filled PTFE Shock Absorber Piston ring for Motorbike front shocks


    20mm Carbon fiber filled PTFE Shock Absorber Piston ring for Motorbike front shocks


    Specifications:


    small shock absorber piston


    conventional design


    with PTFE banded on OD


    we can produce according to the customer's drawing


    material of sinter piston: FC-0208 or Hoganas powder


    material of PTFE bands: carbon firber or other fillers


    Physical performance for shock piston

    tensile strength

    More than 18MPa

    elongation @ break

    More than 160%

    shore hardness (bands)

    57 - 61

    density

    2.06 – 2.19 g/cm3

    wear

    Less than 50mg

    friction coefficient

    Less than 0.2

    hardness (sinter piston)

    HRB60-80

    Technical requirements for sinter piston

    Raw material F50 - U3 - 66 or FC - 0208

    Steam treatment

    OD tested by digital air gauge


    Description:


    Filled PTFE Suspension Piston banded piston produced by skirting machine apply in automotives front


    shock absorber


    Xia Yi is specialized in producing shock absorber pistons, PTFE piston rings and related powder metal


    parts. We have set up appearance control standard.


    Pistons are used in front or rear shock absorbers from different automotives or motorcycles

    Spec.: D20XD8X12.5


    Filled PTFE banded piston


    Unique oil holes design


    We produce automatic banding machine by ourselves and we have related testing equipment such as


    projector, analytical balance, friction-abrasion testing machine, blow-off testing machine, friction testing


    machine and so on.We can test most of properties in our company and others we can’t test we will send


    the standard sample blocks to Shanghai Plastics Research Institute.


    Applications:


    Car or motorbike shock absorbers


    Competitive Advantage:


    Unique material for shock piston bands


    Pistons are produced by automatic banding machine can assure the consistency of the size


    Complete testing equipment

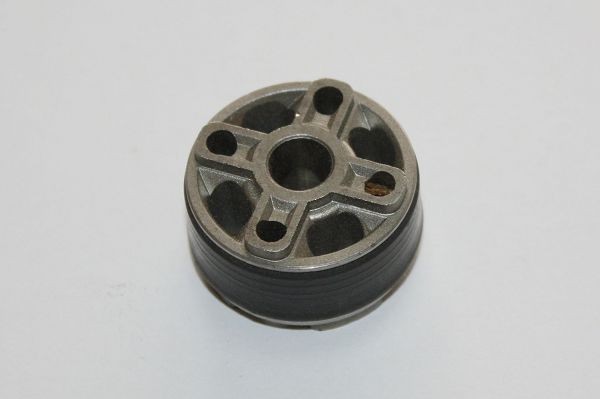

    Picture show:


    20mm Carbon fiber filled PTFE Shock Absorber Piston ring for Motorbike front shocks20mm Carbon fiber filled PTFE Shock Absorber Piston ring for Motorbike front shocks
