Roughness Ra0.8 zinc plating Sleeve Du Bushing with ISO9001/TS16949 Quality System

Specifications:

Description:

Suitable for dry running with a low coefficient of friction, low wear rate, good sliding characteristics.

Transfer film created will protect the mating metal surface. Suitable for rotary and oscillating movement,

high chemical resistance, lower absorption of water and reduced swelling. Also performs well with

lubrication.

Structure

1. PTFE / Fibre mixture thickness 0.01~0.03MM, provides an excellent initial transfer film, which effectively

coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.

2. Sintered bronze powder thickness 0.20-0.35MM, provides Max thermal conductivity away from the

bearing surface, also serves as a reservoir for the PTFE – fibre mixture.

3. Low-carbon steel, gives exceptionally high load carrying capacity, excellent heat dissipation.

4. Copper/Tin plating thickness0.002mm, provides good corrosion resistance.

Tech. Data

Max load Static 250N/mm2

Friction coefficient 0.03~0.20

Very low speed 140N/mm2

Rotating oscillating 60N/mm2 Max

Speed Dry running 2m/s

Hydrodynamic operation >2m/s

Max. PV dry running Short-term

Operation 3.6N/mm2*m/3 Thermal conductivity 42W (m*K)-1

Continuous operation 1.8N/mm2*m/3

Temp. limit -195°C~+280°C

Coefficient of thermal expansion 11*10-6*K-1

Applications:

Mechanical system as auto, truck, tractor and so on which demand sleeve du bushing spare parts

Competitive Advantage:

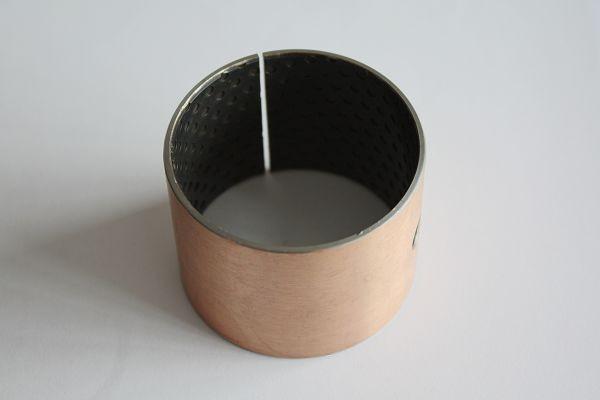

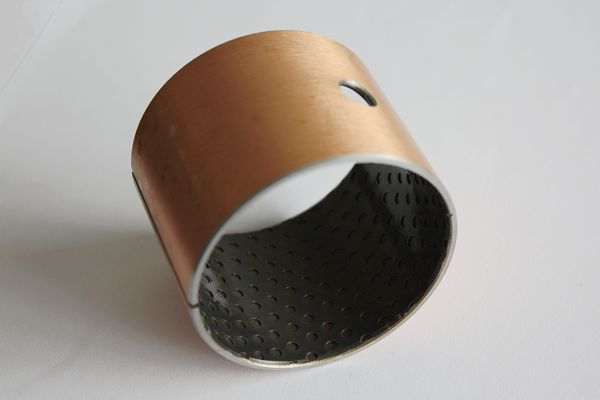

Picture Show

XIAYI, founded in 2006, was set up in a beautiful city Ningbo, which is closed to Ningbo seaport and airport. XIAYI is a specialized factory that is engaged in producing auto spare parts, designing and manufacturing electromechanical & machinery parts and related automatic equipment. XIAYI has a strong R&D team with full of creative spirit. XIAYI develop new products and new equipment every year and was awarded two patents of utility model and invention patents.

The products include shock absorber piston, rod guider, base valve, oil seal, piston rod, bracket, spring seat, valves, guide pipe, bearing bush, copper bush, guide ring, PTFE ring and gasket, in addition XIAYI design and manufacture automatic machine such as banding machine and groove cutting machine.

As a manufacturer, XIAYI insists on pursuing better quality on and on. We control the quality from raw material to assure the consistency from one batch. We have carried out an integrated production system which is based on quality focus. We refer to the rigorous four aspects ( material importing control→ production line control→ QC department control→ logistic department control ) and quality control system to make sure all the products are intact before delivery.

As a seller, our products are exported to the whole world and sold nationally for more than 8 years. About 30% parts are exported to USA, Germany, France, Canada, Brazil, India, Malaysia etc., have set up good relationship with the customers from home and abroad. We have an intelligent marketing team who are exploring new markets, developing potential customers, solving problems and serving customers with orders well. We firmly believe that we are a competitive and friendly cooperator and our goal is for mutual benefit and long-term cooperation. XIAYI persons will always welcome customers from all over the world to visit and negotiate.
