    Automatic pressing Density 2.14 PTFE backup rings for lining , seal components

    Ask Lasest Price
    Brand Name : XIAYI
    Model Number : Customized PTFE gasket
    Certification : ISO9001:2008
    Price : negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100,000pcs per month
    Delivery Time : one week for new samples
    • Product Details
    • Company Profile

    Automatic pressing Density 2.14 PTFE backup rings for lining , seal components


    Carbon fiber filled PTFE gasket with density 2.14 suited for sinter piston


    Specifications:


    Material

    pure PTFE

    Color

    White

    High and low temperature resistance

    -200 - 260°C

    Processing

    Machine by mold

    Dynamic friction coefficient

    0.2-0.3


    1. Low water absorption


    2. Corrosion resistance


    3. Temperature resistance


    4. High diaphaneity


    5. Voltage resistance


    Description:


    1. Good tensile strength


    2. High insulation


    3. Best corrosion-resistant


    4. Low friction


    5. Abrasion resistance


    PTFE has a wide range of practicable temperature from -180 ~ 260°C and a wax-like surface to which


    anything hardly sticks. PTFE has the lowest coefficient of friction of all known solid materials. It has the


    best electrical properties of all plastics.


    Industry Application:


    Pipe coupling fittings


    Valve disc/plate/bushing/sleeve


    Insulators/electric components


    Pipe connectors/impeller/gasket


    Medical device parts


    Code No.

    Additive

    %

    Modification

    Application

    XYGF-15

    XYGF-20

    XYGF-25

    Glass fiber powder

    15

    20

    25

    Anti-abrasion, low friction, electrical environment and creep-resistant

    Bearing, gasket, valve seat, liner and other mechanical and electronic use

    XYG-15

    Graphite

    15

    Anti-corrosion, low friction and creep-resistant

    Mechanical and chemical anti-corrosion

    XYB-60

    Bronze powder

    60

    Creep-resistant, low friction and heat conductivity

    Plunger ring, supporting gasket and other bearing mechanical use

    XYC-20

    XYC-20(S)

    Hard carbon

    Soft carbon

    20

    Creep-resistant, low friction, other application in water and liquid media

    Sealing ring, filler and bearing, etc.


    Applications:


    Molded PTFE PTFE rod can be used as lining, seal components, wire isolation, slide block, gasket, seal, dielectric material, etc.


    Competitive Advantage:


    1. Good service: We treat clients as friends


    2. Good quality: We have strict quality control system. Good reputation in the market


    3. Quality Control: Approved by GB/T 19001-2008/ ISO9001:2008


    4. Fast and cheap delivery: We have big discount from forwarder(Long Contract)

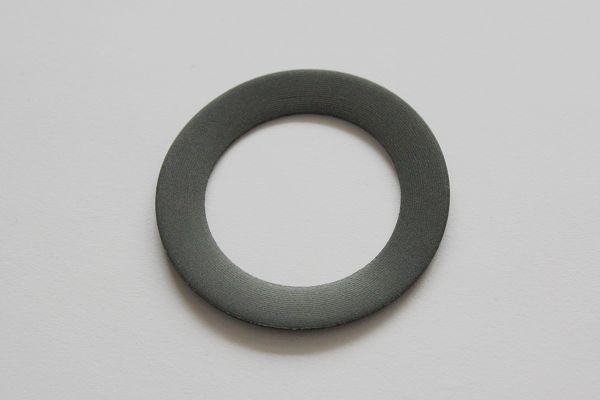

    Picture show:
