High Quality precision shock absorber base valve delivery with PPAP documnets

Specifications:

Description:

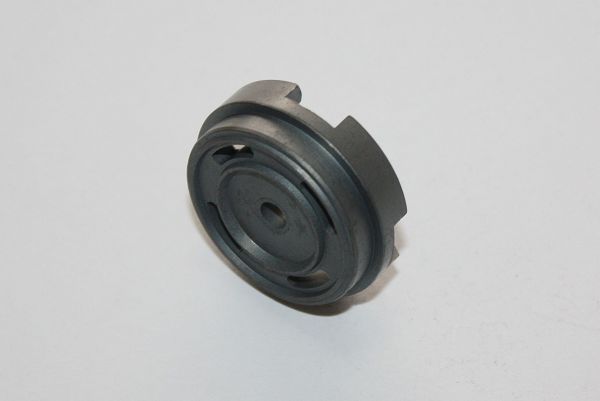

Product name: powder metallurgy foot Valve for Shock Absorber

Raw Materials: MPIF FC-0205

Feature:

1. Density from 6.3-6.7 g/cm³

2. Hardness: HRB60-100

3. Steam treatment: 2H high temp steam holding time, thickness of Fe₃O₄:0.004-0.005mm

4. Full line products for shock absorber, including powder metallurgy piston, rod guide, foot valve, PTFE band piston and so on.

Manufacturability:

1. Auto Mechanical Press: 50T, 100T, 140T

2. Hydraulic Press: 100T, 315T, 600T, 800T

3. Sinter furnaces, including one harden Sinter Furnace

4. Heat treatment: Carbonitriding quenching and high frequency quenching

5. Ultrasonic clearing and auto de-burring

6. In-house tooling making: EDM, wire cutting machine

7. Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc

Test Ability:

1. Carbon sulfur tester

2. Metallurgic microscope

3. Hydraulic universal material tester

4. Hardness testers

5. Pneumatic measuring instrument

6. Measuring projector

7. Gear testing instrument

8. Electrical profile meter

Advantage:

1. Well experienced OEM manufacturer

2. Many years in the powder metallurgy industry

3. Professional technology service

4. Familiar with automobile industry requirement

Application:

Car shock absorber, motorcycle shock absorber

Competitive Advantage:

Quick delivery: workshop run in 12 hours*2 shifts, monthly output more then 4 million pieces.

High quality guarantee: electronic balance to ensure density, test equipments to ensure crushing strength, QC an PQC to ensure close tolerance and accurate dimension.

Picture show:

XIAYI, founded in 2006, was set up in a beautiful city Ningbo, which is closed to Ningbo seaport and airport. XIAYI is a specialized factory that is engaged in producing auto spare parts, designing and manufacturing electromechanical & machinery parts and related automatic equipment. XIAYI has a strong R&D team with full of creative spirit. XIAYI develop new products and new equipment every year and was awarded two patents of utility model and invention patents.

The products include shock absorber piston, rod guider, base valve, oil seal, piston rod, bracket, spring seat, valves, guide pipe, bearing bush, copper bush, guide ring, PTFE ring and gasket, in addition XIAYI design and manufacture automatic machine such as banding machine and groove cutting machine.

As a manufacturer, XIAYI insists on pursuing better quality on and on. We control the quality from raw material to assure the consistency from one batch. We have carried out an integrated production system which is based on quality focus. We refer to the rigorous four aspects ( material importing control→ production line control→ QC department control→ logistic department control ) and quality control system to make sure all the products are intact before delivery.

As a seller, our products are exported to the whole world and sold nationally for more than 8 years. About 30% parts are exported to USA, Germany, France, Canada, Brazil, India, Malaysia etc., have set up good relationship with the customers from home and abroad. We have an intelligent marketing team who are exploring new markets, developing potential customers, solving problems and serving customers with orders well. We firmly believe that we are a competitive and friendly cooperator and our goal is for mutual benefit and long-term cooperation. XIAYI persons will always welcome customers from all over the world to visit and negotiate.
