    Sliding speed 6m/s oil impregnated sint A50 spray steel backing du bushing

    Ask Lasest Price
    Brand Name : XIAYI
    Model Number : SF-1W
    Certification : ISO9001:2008
    Price : negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 50,000pcs per month
    Delivery Time : Within 20-25days after order confirmation
    • Product Details
    • Company Profile

    Sliding speed 6m/s oil impregnated sint A50 spray steel backing du bushing



    Sliding speed 6m/s oil impregnated sint A50 spray steel backing du bushing

    Specifications:

    Temperature

    -195 to +280 [ °C ]

    Max. dry running Pv (Short-term operation)

    3.6N/mm2.m/s

    Max. dry running Pv (Continuous operation)

    1.8N/mm2.m/s

    Max. speed (dry running)

    2m/s

    Max. speed (Hydrodynamic operation)

    >2m/s


    Description:

    We are producing full line of self-lubricated bushing. And our products are available in a variety of forms

    such as cylindrical wrapped bushes flanged bushes thrust washers, etc

    Properties:

    Load capacity: 140N/mm2

    Temperature: -195~+280°C

    Speed limit: 5m/s

    Friction coefficient (μ): 0.04~0.20

    PV limit (dry): 3.6N/mm2.m/s

    PV limit (oil): 50N/mm2.m/s

    DU bush Hydraulic oil cylinder special bushing

    1. PTFE with oil fibre can protect the shaft, while machine in operation.

    2. It is of low friction coefficient, anti-wear.

    3. Good running in property.

    4. It fits well in motion of circumrotation, sway and to-and-fro.

    5. It can be used in food machine, pharmaceutical machine etc. due to lead-free.

    6. Besides the same function of MP10 in particular fits frequently reciprocating motion with a high side

    force, it is widely used in automobile, motor damper and oil pumps etc.

    Materials: Metal-polymer three layer, PTFE layer and bronze layer and steel plate

    · Thickness of improved PTFE: 0.01-0.05mm

    · Thickness of Spherical Bronze: 0.25-0.30mm

    · Thickness of Steel Plate: 0.7-2.2mm

    · Thickness of electroplate Cu Sn 0.003-0.008mm

    · Excellence wear-resistance, low friction coefficient

    · Free maintenance or less maintenance

    · Low noise and environmental friendly

    · In shape of cylindrical wrapped bushes, flanged bushes, thrust washers

    · Auto composite plate product line in house

    · Auto shaping and sizing and chamfering machine in house.

    Advantage:

    1 PTFE / Pb mixture 0.01-0.03mm, provides an excellent initial transfer film

    2 sintered bronze powder0.20-0.35mm, provides Max thermal conductivity away from the bearing surface,

    also serves as a reservoir for the PTFE- lead mixture.

    3 Low carbon steel, gives exceptionally high load carrying capacity, excellent heat dissipation.

    4 copper / Tin plating 0.002mm, provides good corrosion resistance.

    Applications:

    Stainless steel bushing is widely used in strong acid and alkali situation, such as chemical industry,

    pumps and valves.

    Lead free bearing is widely used in food machine, pharmaceutical machine

    Competitive Advantage:


    1. A complete set of testing equipment

    2. Rich experience in bushing production

    3. Good outsource factory

    4. Have an audit for material supplier every year

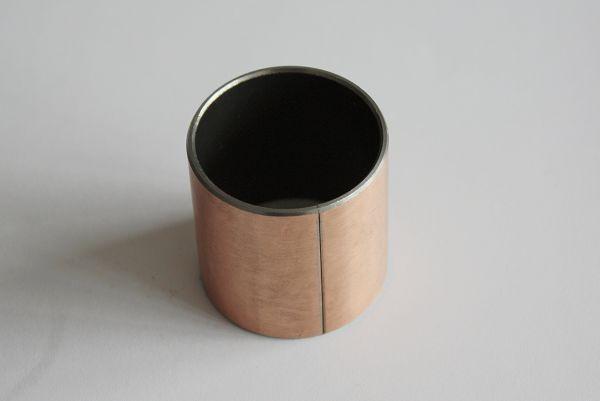

    Picture Show
