    Density PTFE disc 2.18 banded piston with good seal and tensile strength 18MPa

    Ask Lasest Price
    Brand Name : XIAYI
    Model Number : Φ36mm
    Certification : ISO9001:2008
    Price : negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 30,000 pcs per month
    Delivery Time : 10 working days after payment
    • Product Details
    • Company Profile

    Density PTFE disc 2.18 banded piston with good seal and tensile strength 18MPa


    Density of PTFE disc 2.18 banded piston with good seal and tensile strength 18MPa


    Specifications:


    Physical performance for shock piston

    tensile strength

    More than 15MPa

    elongation @ break

    More than 200%

    shore hardness

    57 - 61

    density

    2.15 – 2.19 g/cm3

    wear

    Less than 50mg

    friction coefficient

    Less than 0.3

    highest working temperature

    260℃


    Description:


    Fe-C-Cu material based suspension piston, PTFE piston ring can stand fatigue test


    Size: D36XD8X12

    Nether OD: 35.90-35.94mm

    Upper OD: 36.05-36.30mm

    Banded height (including iron part): 11.20-11.70mm

    Bore size: 36mm

    Groove fill: Min0.34mm


    Material of PTFE disc

    PTFE + carbon or according to customer’s demand


    Xia Yi company product suspension pistons, shock absorber pistons and other sintered parts of shock absorbers. The products include rod guider, piston, valve seat and other powder metallurgy parts.

    We can offer our suspension pistons with aggressive pricing, superior design and engineering, excellent quality and unparalleled service and delivery.


    Process of the piston banding

    POWDER BLENDING→PTFE SYLINDER COMPRESSION→SINTERING→PTFE DISC PRODUCTION→PREPRESSING→HEAT PRESSING→MOLDING→DEBURRING→INSPECTION→PACKAGE


    Advantages:

    Low-cost

    Close Tolerances

    Complex multi-level design

    High strength


    Applications:


    Car or motorbike shock absorbers


    Competitive Advantage:


    XIAYI is a professional company which produces different size and design shock absorber pistons.

    XIAYI has a complete set of testing equipment which can control the quality for the material.

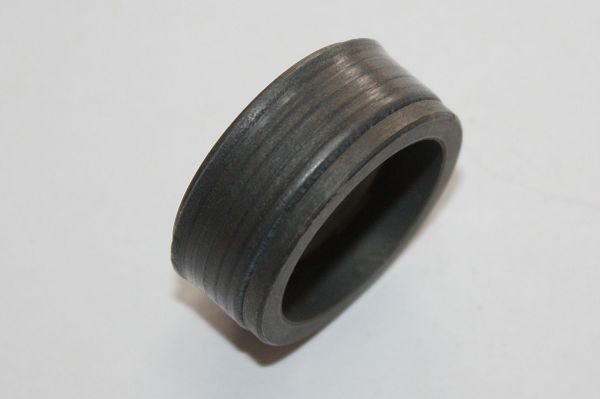

    Picture show:
