    Unique fluid channels for banded pistons 30mm diameter with conform size

    Ask Lasest Price
    Brand Name : XIAYI
    Model Number : Φ30mm
    Certification : ISO9001:2008
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 300,000pcs per month
    Delivery Time : One week after payment
    • Product Details
    • Company Profile

    Unique fluid channels for banded pistons 30mm diameter with conform size


    unique fluid channels for banded pistons 30mm diameter with conform size


    Specifications:


    Physical performance for shock piston

    tensile strength

    More than 15MPa

    elongation @ break

    More than 200%

    shore hardness

    57 - 61

    density

    2.06 – 2.19 g/cm3

    wear

    Less than 50mg

    friction coefficient

    Less than 0.3

    highest working temperature

    260℃


    Description:


    XIAYI produce different size of shock absorber pistons. These pistons can be used in different car or motorcycle shock absorbers.


    Sinter pistons based, band PTFE rings on outside, can assure the good seal and wear resistance.


    Processing for sinter pistons

    Mixing powder——Forming——Sintering——Sizing——After treatment——Steam treatment——Oil impregnant——Packing——Shipping


    There are plenty of testing machines in our company.

    Tensile testing machine which can test tensile strength & elongation @ break according to GB/T 1040.2/1B-2012


    abrasion testing machine which can test friction coefficient & abrasion loss according to GB/T3960-1983(1989)


    Density balance can test material density to assure the material quality and homogeneous distribution


    Shore Hardness (D) tester

    Rockwell hardness tester

    Projecting machine


    We also develop the testing machines by our team workers. For example: blow-off testing machine, fatigue testing machine and friction testing machine.

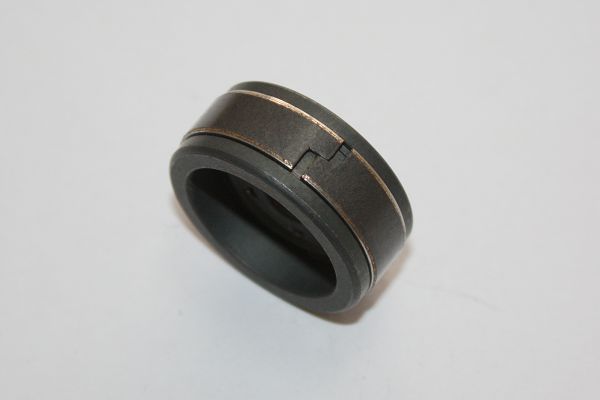

    Size: 30# PISTON

    PTFE piston ring banded on sinter piston

    PTFE coated bushing reduces wear

    Four round holes & six square holes design

    Shock Absorber Type: Hydraulic

    Wear resistant piston ring reduces friction and possibility of leakage

    Certification: ISO/TS16949


    Applications:


    Used in car or motorbike shock absorbers


    Competitive Advantage:


    XIAYI can produce bands rings by itself to low down the cost and control the quality at home, at the same


    time XIAYI can design and produce automatic banding machine and non-standard testing machine, can


    test drawing force testing and oil immersion testing.


    Picture show:




    Quality Unique fluid channels for banded pistons 30mm diameter with conform size for sale
