PTFE banding D27 Shock Absorber Piston with good seal and low friction for shocks

Specifications:

Description:

PTFE banding D27 Shock Absorber Piston with good seal and low friction for various automotive

Our company produces shock absorber pistons with variety types. These shock absorber pistons can be

used in different car shock absorbers.

We have a strong team to research and develop automatic banding machines and annual capacity can

reach more than 20, 000, 000 PCS.

SPEC: D27XD8.5X12

• The piston is exported to Malaysia

• Used for rear shock absorber

• Material: F10.U3.60

• Hardness 65 HRB min

• Inclined holes

• Density is 6.3g/cm3

• With steam treatment

• Net weight is 27.82g

Here is the physical property of banding rings:

Tensile strength≥18MPa

Working temperature＝-80～260℃

Friction coefficient ≤0.20

Coefficient of linear expansion＝1.5*10-4l/℃

Elongation at break≥180％

density＝2.12-2.22g/cm3

hardness＝52-62

We can use the following material to produce discs:

1. PTFE+BRONZE

2. PTFE+CARBON (GRAPHITE)

3. PTFE+CARBON FIBER

4. PTFE+GLASS FIBER

5. OTHER FILLERS SUCH AS MOLYBDENUM DISULFIDE OR EKONOL

Applications:

Car or motorbike shock absorbers

Competitive Advantage:

XIAYI is a professional company which produces different size and design shock absorber pistons.

XIAYI has a complete set of testing equipment which can control the quality for the material.

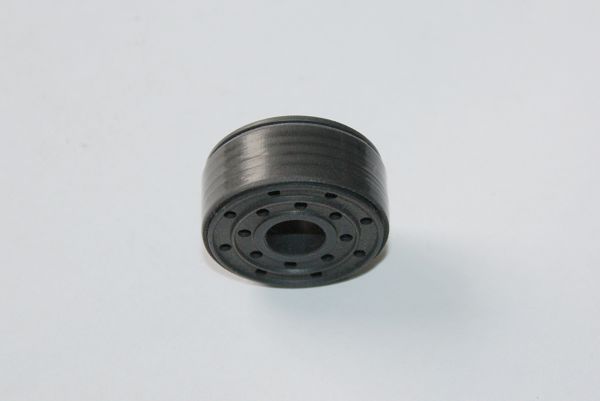

Picture show:

XIAYI, founded in 2006, was set up in a beautiful city Ningbo, which is closed to Ningbo seaport and airport. XIAYI is a specialized factory that is engaged in producing auto spare parts, designing and manufacturing electromechanical & machinery parts and related automatic equipment. XIAYI has a strong R&D team with full of creative spirit. XIAYI develop new products and new equipment every year and was awarded two patents of utility model and invention patents.

The products include shock absorber piston, rod guider, base valve, oil seal, piston rod, bracket, spring seat, valves, guide pipe, bearing bush, copper bush, guide ring, PTFE ring and gasket, in addition XIAYI design and manufacture automatic machine such as banding machine and groove cutting machine.

As a manufacturer, XIAYI insists on pursuing better quality on and on. We control the quality from raw material to assure the consistency from one batch. We have carried out an integrated production system which is based on quality focus. We refer to the rigorous four aspects ( material importing control→ production line control→ QC department control→ logistic department control ) and quality control system to make sure all the products are intact before delivery.

As a seller, our products are exported to the whole world and sold nationally for more than 8 years. About 30% parts are exported to USA, Germany, France, Canada, Brazil, India, Malaysia etc., have set up good relationship with the customers from home and abroad. We have an intelligent marketing team who are exploring new markets, developing potential customers, solving problems and serving customers with orders well. We firmly believe that we are a competitive and friendly cooperator and our goal is for mutual benefit and long-term cooperation. XIAYI persons will always welcome customers from all over the world to visit and negotiate.
