    Wear and corrosion resistance Banded Piston with PTFE banding material

    Ask Lasest Price
    Brand Name : XIAYI
    Model Number : Φ25mm
    Certification : ISO9001:2008
    Price : negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 50,000 pcs per month
    Delivery Time : One week after payment
    • Product Details
    • Company Profile

    Wear and corrosion resistance Banded Piston with PTFE banding material


    Wear and corrosion resistance Shock absorber Pistons with PTFE banding material


    Specifications:


    Physical performance for shock piston

    tensile strength

    More than 18MPa

    elongation @ break

    More than 160%

    shore hardness (bands)

    57 - 61

    density

    2.06 – 2.19 g/cm3

    wear

    Less than 50mg

    friction coefficient

    Less than 0.2

    hardness (sinter piston)

    HRB60-80

    Technical requirements for sinter piston

    Raw material F50 - U3 - 66 or FC - 0208

    Steam treatment

    OD tested by digital air gauge


    Description:


    Wear and corrosion resistance HYUNDAI, NISSAN, KIA, FORD Shock absorber Pistons with PTFE


    banding material


    XiaYi is specializing in producing damper pistons. Our products are not only selling well in many cities in


    China, but also exported to many overseas countries and regions, such as Africa, South America,


    Southeast Asia and the Middle East.


    Our enterprise is trying our best to provide higher quality products at lower price, and bring you


    satisfactory customer service. We always optimize our products to meet different requirements of


    customers. We also provide OEM services. We do business in good faith and enjoy a good reputation for


    our good after-sales service.


    SPEC: D25XD8X13


    • 6 holes design


    • The pistons are sold to primary market


    • Can do slide resistance test according to the customer's demand


    • Piston should slide down uniformity both in positive and contrary direction, no damping stagnation


    • Test velocity is 3mm/min, Static strength damage: 11.27KN


    • Net weight is 19.60g


    PTFE material has the following characteristic


    (1)Physical properties: smooth surface, waxy, ivory and opacity, average density is 2.2


    (2)Mechanical properties: tensile strength is 20.0~30.0MPa, elongation at break is 300%~400%, modulus


    of elasticity is 400 MPA, surface hardness is 55-70HS, friction coefficient between PTFE is 0.1-0.2


    (3)Chemical properties: can resist most strong corrosive material, no solvent can’t dissolve, it under


    300℃, strong weather ability, can store more than ten years


    Advantages:


    1. Wear and corrosion resistance


    2. Efficiency steaming treatment


    3. Reduces friction and ensure smooth rod reaction


    4. PTFE banded piston


    5. It is equipped with piston rings to provide a good seal between the cylinder wall and piston


    6. Increased seal durability


    Applications:


    Car or motorbike shock absorbers


    Competitive Advantage:


    XIAYI is a professional company which produces different size and design for shock absorber pistons.


    XIAYI has a complete set of testing equipment which can control the quality for the material.

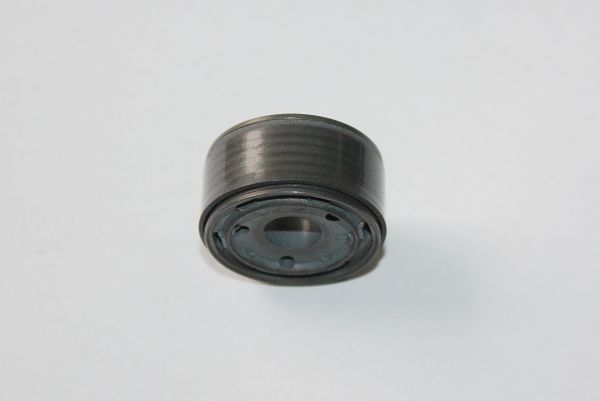

    Picture show:




    Quality Wear and corrosion resistance Banded Piston with PTFE banding material for sale
