    Customized Sintered Shock Absorber Piston Adjustable Boat Seat

    Ask Lasest Price
    Brand Name : XIAYI
    Model Number : Φ31.05mm
    Certification : IATF16949:2016
    Price : negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 30,000 pcs per month
    Delivery Time : Two weeks after payment
    • Product Details
    • Company Profile

    Customized Sintered Shock Absorber Piston Adjustable Boat Seat

    Customized Sinter Piston Applied Shock Absorbing Adjustable Boat Seat


    Specifications:

    Physical performance for shock piston

    tensile strength

    More than 18MPa

    elongation @ break

    More than 160%

    shore hardness (bands)

    57 - 61

    density

    2.06 – 2.19 g/cm3

    wear

    Less than 50mg

    friction coefficient

    Less than 0.2

    hardness (sinter piston)

    HRB60-80

    Technical requirements for sinter piston

    Raw material F50 - U3 - 66 or FC - 0208

    Steam treatment

    OD tested by digital air gauge


    Description:

    Xia Yi, found in 2006, after several years’ effort, we have achieved great success in the enterprise. We increased our workshop this year
    and developed several new automatic machines which highly improve work efficiency. We have a technical team to develop automatic machine
    and we improve our pressing machine and other machines to lower the cost and improve efficiency.


    XIAYI company is specialized in design and producing PTFE banded shock absorber pistons,at the same time,we design and manufacture

    automatic skirting machines.

    Till now we have produced so many different types of shock absorber pistons with the diameter from ø20mm~ø50mm.We make PTFE discs and

    toolings in our own factory,can control the quality effectively and also can save much time.

    D36 PISTON:

    RAW MATERIAL OF SINTER PARTS:IRON BASED,IRON & COPPER BASED,COPPER

    BASED,STAINLESS STEEL BASED

    RAW MATERIAL OF PTFE DISC:

    PTFE+BRONZE

    PTFE+CARBON

    PTFE+GLASS FIBER

    PTFE+OTHER fillers according to cutomers’ demand

    The detail information of the pistons:

    1.Used in front shock absorbers

    2.When temperature reach 100℃,expansion ratio ≤+/-1%

    3.Using the testing ring,with the shock absorber oil,max frictional force is 15N

    4.Piston can get through freely of the certain size of cylinder with 2N force

    5.PTFE tensile strength ≥18MPa,elongation @ break ≥200%

    6.Tight integration between piston and PTFE disc.PTFE won't fall off when working in the cylinder.

    Applications:

    Shock absorbers from Ship and boat

    Competitive Advantage:

    1. Consistency in size

    2. Infrared ray detect the diameter

    3. Strict control plan

    4.100% testing for outer diameter

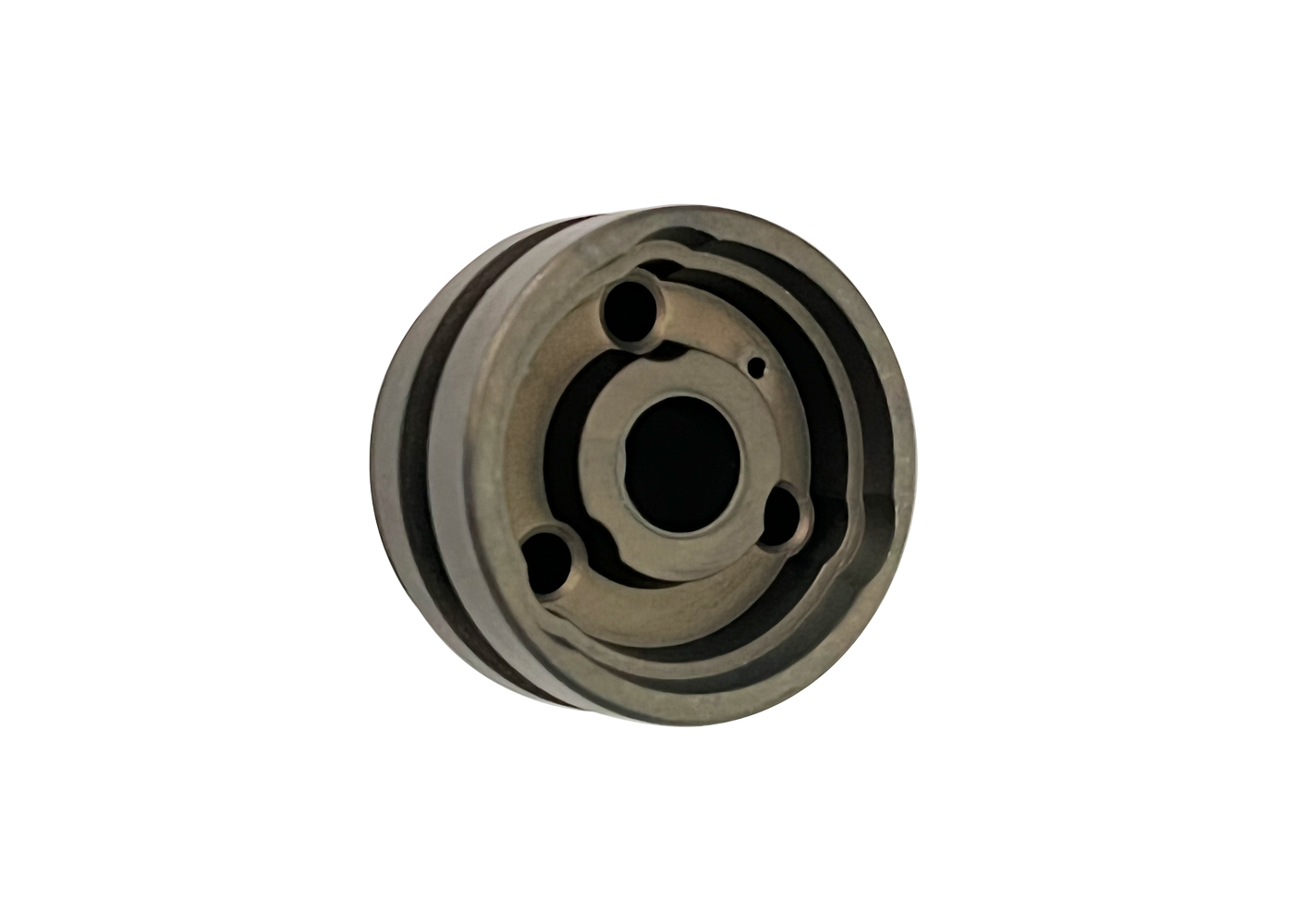

    Picture show:



























































    Quality Customized Sintered Shock Absorber Piston Adjustable Boat Seat for sale
